商品名称: MLGRD-2000T Wire Winding Forging Press

Product Description

RD series products adopt a wire winding frame structure, with a bottom blank holder, reasonable layout, convenient operation, and fast workpiece speed. This series of products adopts finite element optimization design, with good rigidity and stable quality. Mainly used for embossing of hardware products, moulding and other forming processes. Especially suitable for forging of radiator;

•Adopt fast liquid filling and fast pressure relief technology, fast pressurization speed and short pressing cycle

•Equipped with servo motor pump hydraulic control system, accurate, fast, energy saving and low noise

•Independent filter cooling device

•Photoelectric protection device

•Displacement sensor, precise positioning

Outline

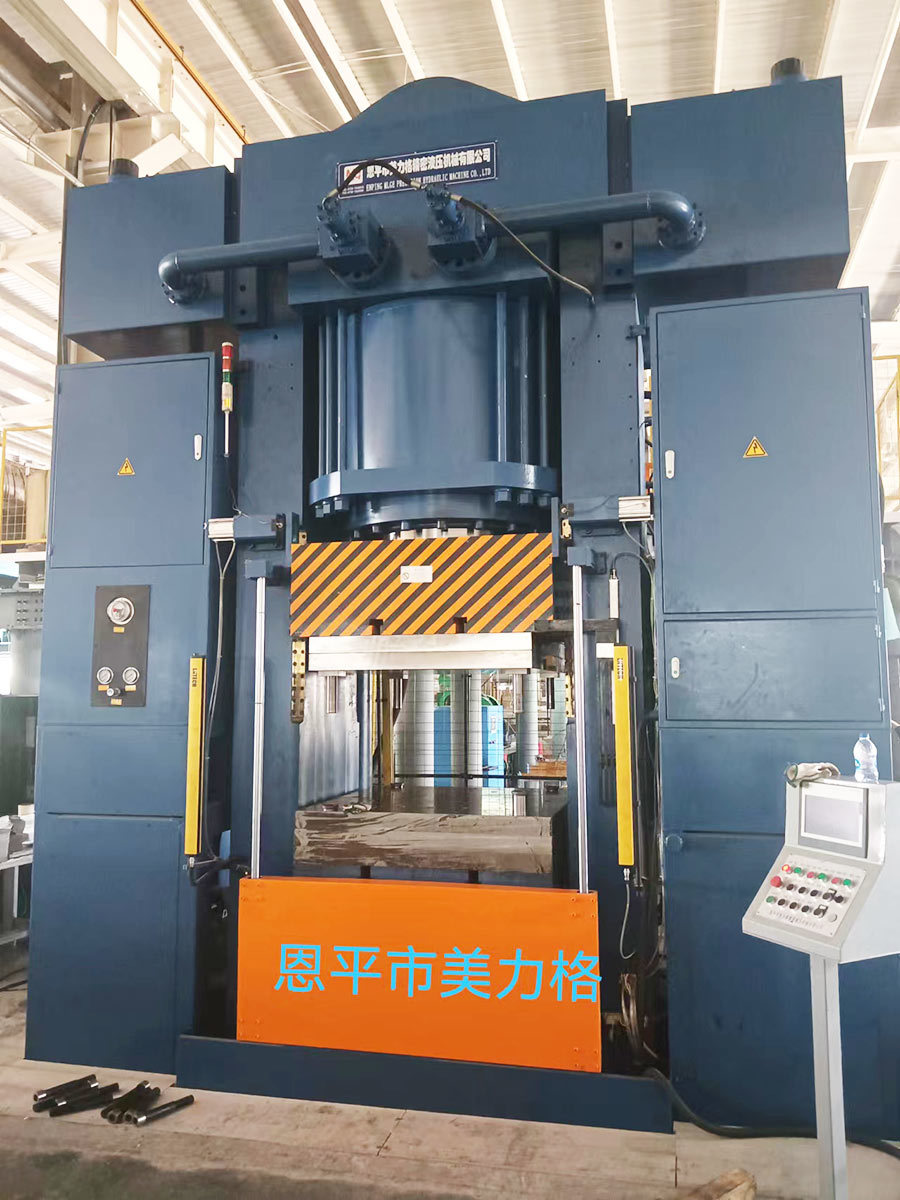

MLGRD-5000T Wire Winding Forging Press

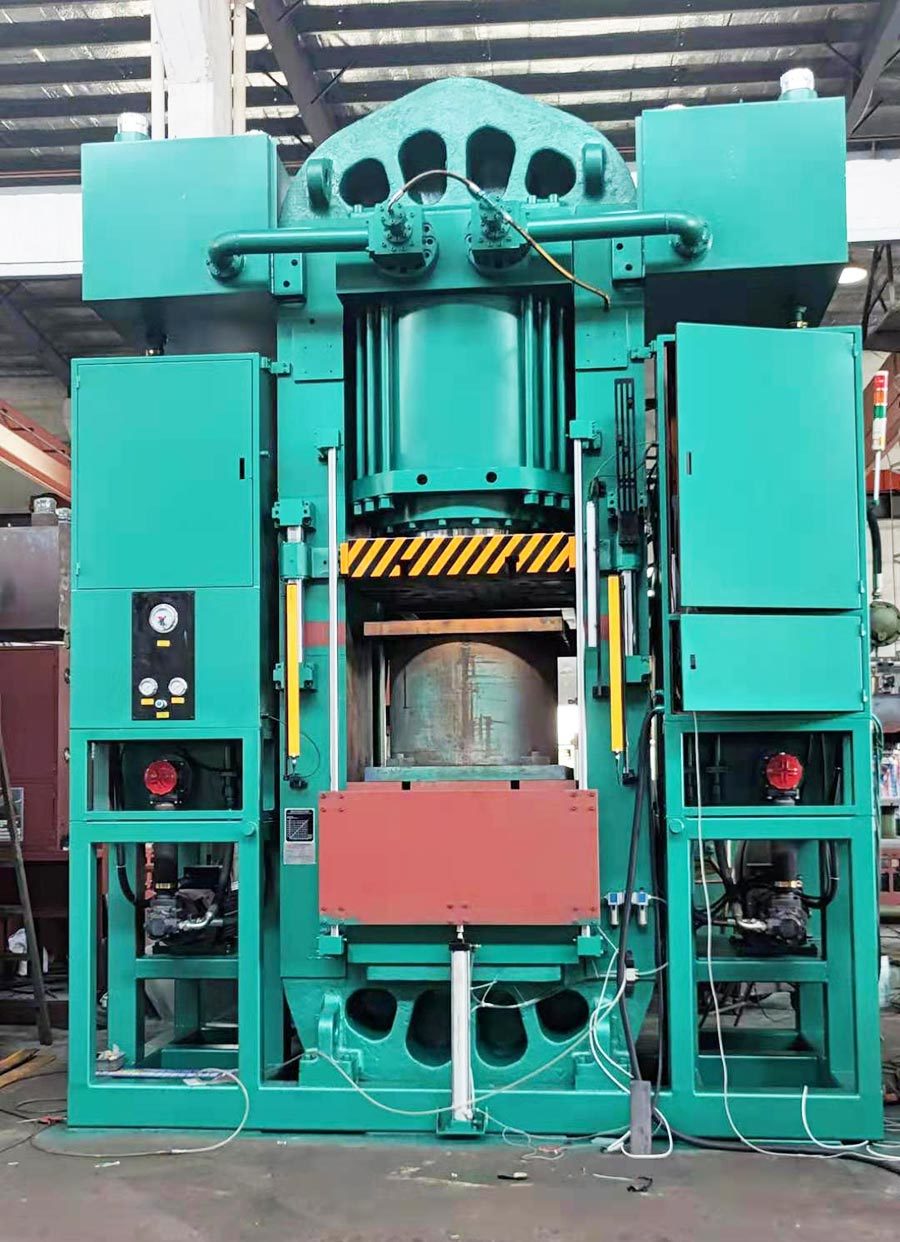

Physical Image

Wire Winding Forging Press

Product parameters (servo)

Serial Number	Item		Unit	Data
1	main nominal force		kN	20000
2	max working pressure		MPa	80
3	ram stroke		mm	400
4	ejector force		kN	500
5	ejector stroke		mm	80
6	secondary ejector force		kN	80
7	secondary ejector stroke		mm	40
8	Blank holder force		kN	500
9	Blank holder stroke		mm	60
10	Demoulding force		kN	500
11	Demoulding stroke		mm	100
12	open height	max	mm	1000
12	open height	min	mm	600
13	ram speed	downward	mm/s	280
		pressing	mm/s	28
		return	mm/s	280
14	motor power		kW	75
15	pump flow		L/Min	440
16	Tablework (RL x FB)		mm²	800×800
17	total weight		Ton	24
