MLG28-500T stretching machine

Classification：

MLG28 series stretching machine

This series of products adopts a four-column structure, with a bottom blank holder, which has a reasonable layout, convenient operation and fast working speed. The main hydraulic components of this series of products are products from Vickers of the United States and Rexroth of Germany (* some products use Taiwan hydraulic components)

key word：Precision machinery

Inquiry

TEL：

0750-7826910

Product description

商品名称: MLG28-500T stretching machine

Product Description

Stretching, thinning and stretching and thinning are integrated. It is a special stretching machine specially designed and manufactured for the aluminum products and stainless steel industries. It is especially suitable for stretching aluminum sheets and stainless steel sheets. and punching materials in other fields;

•Two-stage speed control of movable beam, stable action and low energy consumption

•The stroke position of the master cylinder and the blank holder can be adjusted to meet the process requirements

•Safety protection device

•Adopt advanced support technology, reliable support and reduce impact.

•The hydraulic control adopts the integrated system of the cartridge valve, which has small impact, reliable action, long service life and few leakage points.

•The pulling side and the pressure side are adjustable.

•The return cylinder has a jog function

•Adopt servo system: high production efficiency, low noise, low vibration, simple operation and maintenance;

•Digital control: the user only needs to input simple displacement and speed parameters to realize the required process programming, which is extremely convenient to use;

Outline

MLG28-500T stretching machine

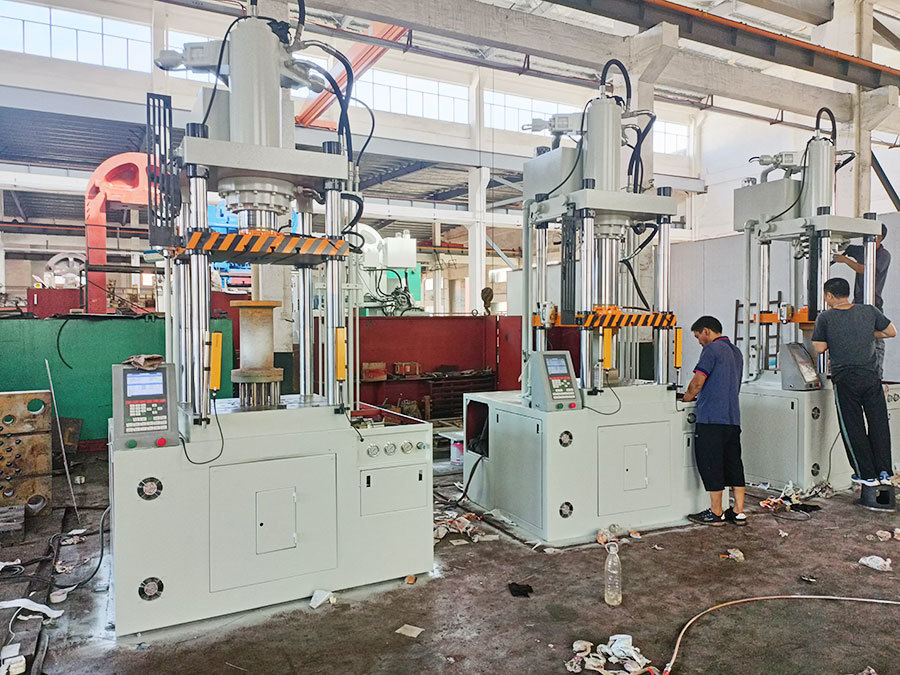

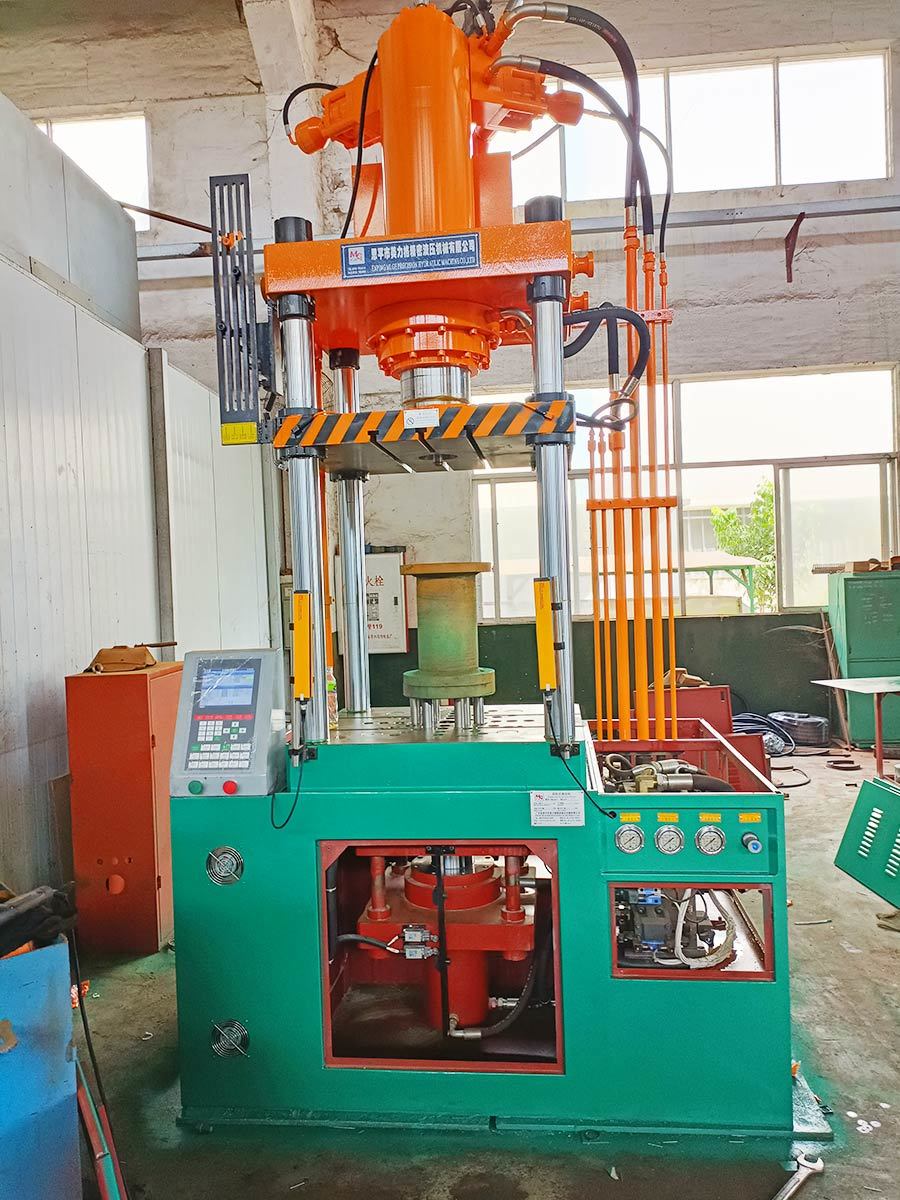

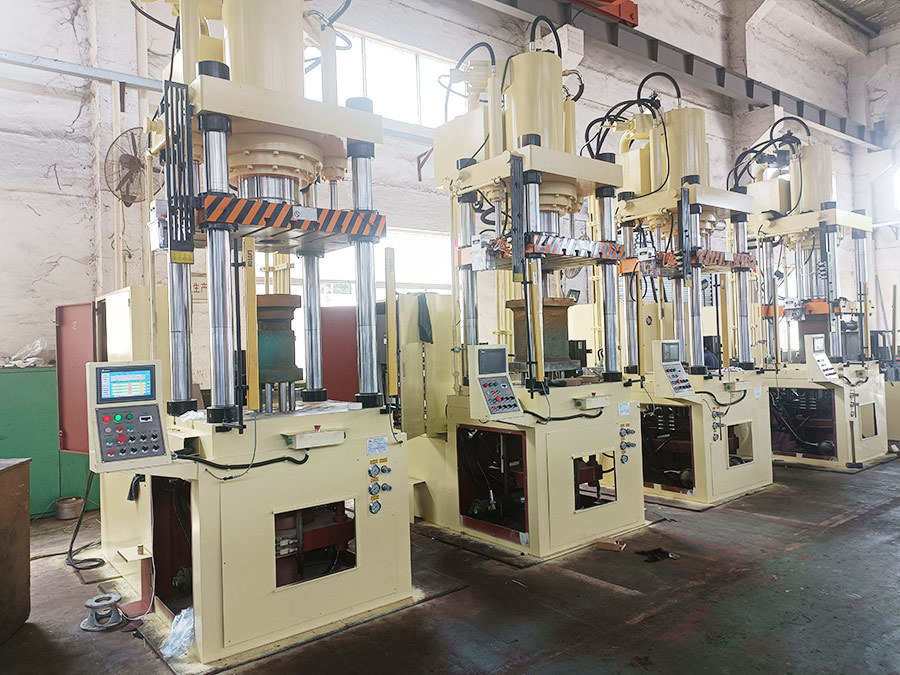

Physical Image

Four Column Stretcher

Product parameters (standard 28T)

Serial Number	description		unit	Standard 28T
1	nominal capacity		kN	3500
2	maximum working pressure of main cylinder		MPa	20

3	Return Nominal Force return capacity		kN	280
4	Nominal force of blank holder blankholder cylinder capacity		kN	1500
5	Maximum working pressure of blank holder liquid blankholder cylinder pressure		MPa	20

6	Nominal force of return cylinder ejecton capacity		kN	50
7	Maximum travel of movable beam ram stroke		mm	650
8	Maximum stroke of blank holder blankholder cylinder stroke		mm	300
9	Maximum stroke of return cylinder ejecton cylinder stroke		mm	250
10	Distance from movable beam to work surface open height	max	mm	1200
		min	mm	550
11	Lifting speed of movable beam ram speed	down	mm/s	330
		suppress（11Mpa） pressing	mm/s	24-45

		up	mm/s	300
12	Crimping cylinder piston rod speed blankholder cylinder speed	up	mm/s	80
		down	mm/s	under the beam
13	sevvo motor power		kW	66
14	Effective area of workbench Table area left and right (inside the column) & times; front and rear (edge to edge) (RL x FB)		mm²	800×990

15	pump flow		L/min	270+240
16	total weight		ton	13
