MLG88-2500T four-column forged machine

Classification：

MLG88 series four-column forging press

The 88 series of products adopts the three -beams and four -column cylinder beams, and the lower side is pressed, the layout is reasonable, the operation is convenient, the workpiece speed is fast, the main oil cylinder is integrated in the cylinder beams, high life, good anti -fatigue performance, good safety performance

key word：Precision machinery

Inquiry

TEL：

0750-7826910

Product description

商品名称: MLG88-2500T four-column forged machine

Product Description

The 88 series of products adopts the three -beams and four -column cylinder beams, and the lower side is pressed. The layout is reasonable, the operation is convenient, and the workpiece speed is fast. This series of products adopts finite element optimization design, with good rigidity and stable quality. It is mainly suitable for molding processes such as hardware products, compound models and other molding processes. It is especially suitable for the squeezing and thinning of the molding aluminum cooker and the forging of the radiator.

• Use fast charging, fast pressure relief technology, fast pressure speed, short -pressing cycle

• Equipped with a servo motor pump hydraulic control system, accurate, fast, energy saving, low noise

• Independent filtering cooling device

• Optical protection device

• Shift sensor, precise positioning

Outline

Outline

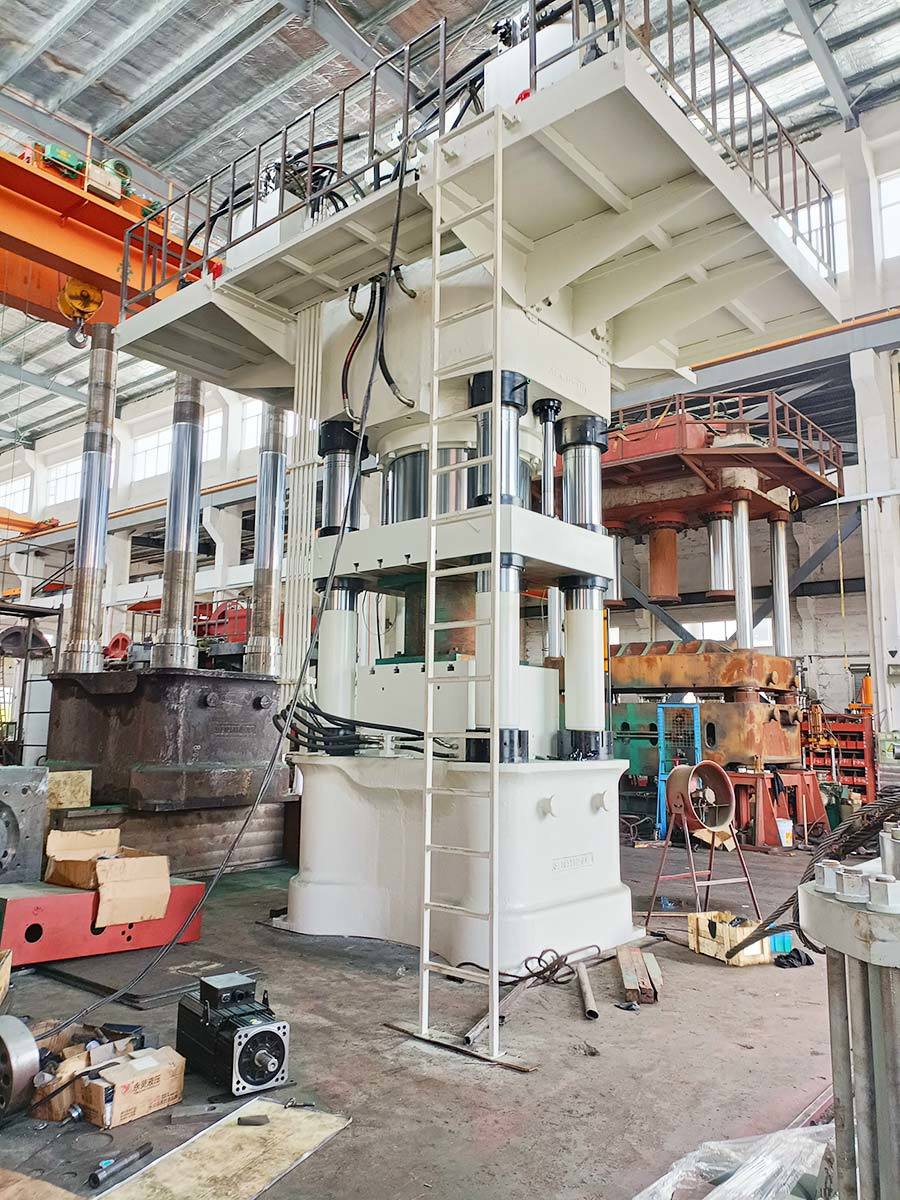

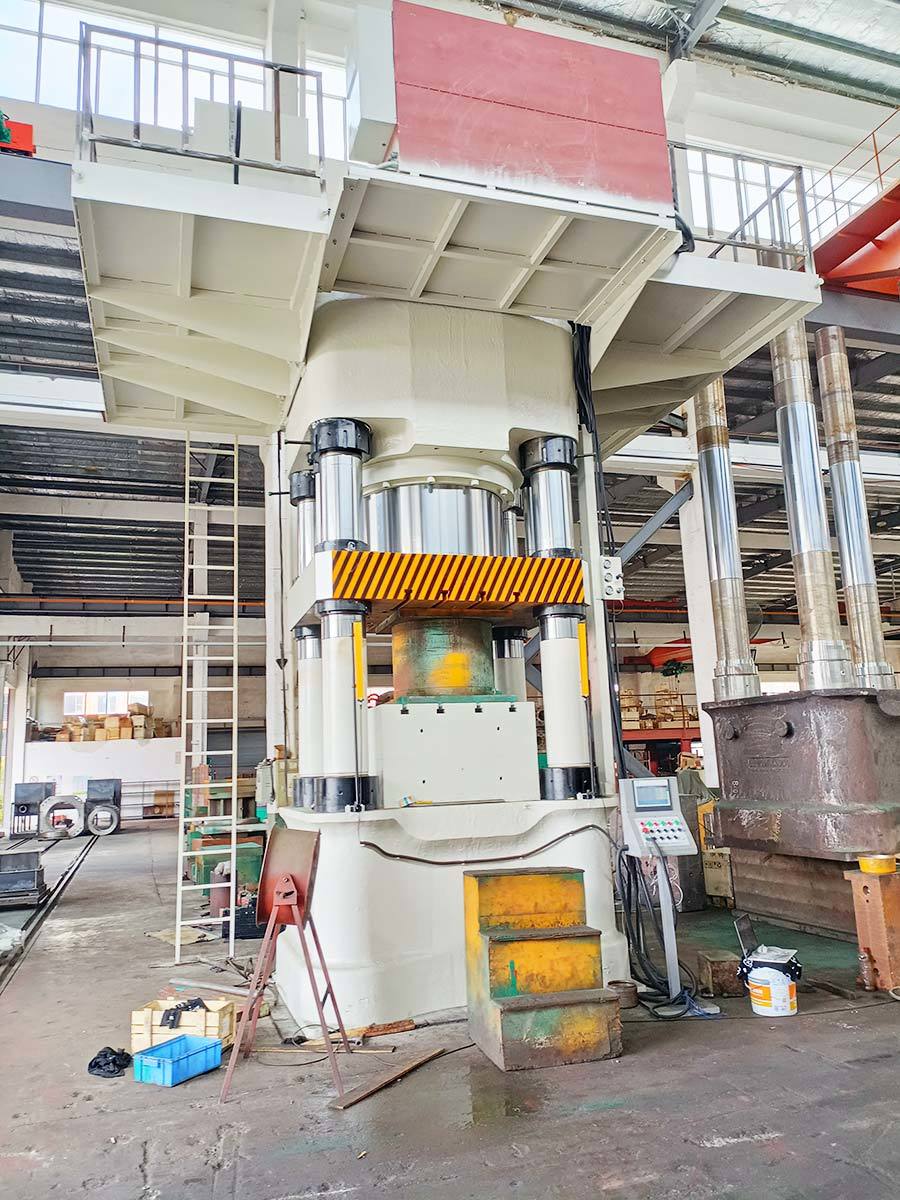

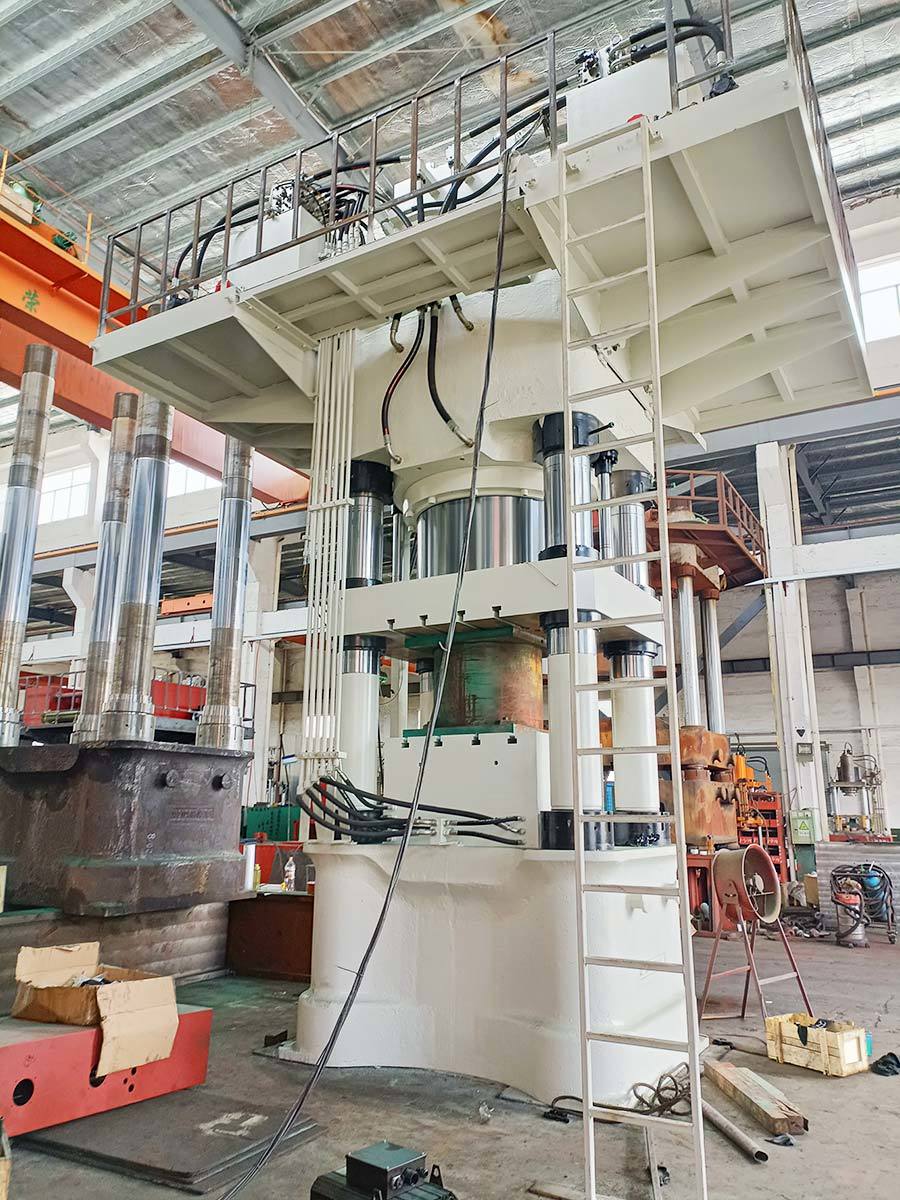

Physical Image

Four-column forging press

Product parameters (servo)

Serial Number	Project		Unit	Data
1	Main oil cylinder		kN	25000
2	Main oil cylinder maximum work pressure		MPa	20
3	Maximum work pressure of hydraulic system		MPa	20
4	Main cylinder		mm	1280
5	Main oil cylinder maximum itinerary		mm	600
6	Quickly return the cylinder publicity		kN	1000
7	One retreat nominal force		kN	1200
8	Maximum itinerary		mm	140
9	One retreat from the diameter		mm	22
10	Two -retreat cylinder publicity		KN	550
11	The largest itinerary of the second retreat cylinder		mm	140+60
12	Diameter in the top of the second retreat		mm	25
13	Press the tank		KN	2000
14	Pressing cylinder stroke		mm	50
15	The diameter of the top of the edge cylinder		mm	50
16	Activity beam to the work table distance	max	mm	1300
16	Activity beam to the work table distance	min	mm	700
17	Movement beam lifting speed	down	mm/s	250
		suppress	mm/s	10-20
		up	mm/s	250
		down	mm/s	Under the beam
18	Servo motor power		kW	90×2
19	Effective area RL×FB		mm²	1200×1200
20	Active area RL×FB		mm²	1200×1200
21	The inside of the column is left and right × front and back		mm	1400×850
22	Active beam		mm	345
